- 所屬分類:轉臺式拋丸機
- 產品描述:
鹽城曙光機械制造有限公司前身為大豐市曙光鑄造機械廠,公司創建于九十年代初,集研發、設計、制造、安裝為一體,是研發生產大型噴砂涂裝一體化設備、拋丸清理設備、鋼板預處理設備、砂處理設備以及環保設備的專業企業?,F(xiàn)建有三個生產廠區,擁有各類優良的加工設備300多套,員工100多名,其中專業技術人員20多名。先后為江蘇悅達、北方重工、上海煙草機械、福建力佳等幾十家知名企業,制造安裝大型鋼板預處理設備和噴砂涂裝房。產品暢銷江蘇、浙江、安徽、山東、湖南、湖北、河南、河北、四川、福建、山西、內蒙古、北京、上海等全國二十多個省市,出口俄羅斯、馬來西亞、土耳其、印度等國家。
- TEL:181-0511-2776
產品詳情

| 型號 Model | Q3512 | Q3516 | Q3525C |
|---|---|---|---|
| 轉臺直徑 The diameter of turntable (mm) | Φ1200 | Φ1600 | Φ2500 |
| 轉臺轉速 The rotate speed of turntable (r/m) | 0.36 | 0.36 | 0.36 |
| 最大裝載量 The max weight capacity (kg) | 200 | 600 | 1000 |
| 拋丸器型號 The model of impeller head | Q034 | Q034 | Q034 |
| 拋丸量 Shot blasting capacity (kg/min) | 160 | 240 | 240×2 |
| 清理工件尺寸 The measurement of Cleaning workpieces (mm) | 300×130×120 | 700×250×250 | 1000×800×400 |
| 彈丸直徑 The diameter of shots (mm) | Φ0.5–1.5 | Φ0.5–2 | Φ0.5–2 |
| 提升量 lifting capacity (t/h) | 20 | 25 | 29 |
| 提升機功率 The power of elevator (kw) | 1.5 | 2.2 | 2.2 |
| 總通風量 The whole air volume (m3/h) | 2200 | 2500 | 3500 |
| 總功率(不含除塵) The total motor power (Exclude dedusting) (kw) | 11 | 19 | 25 |

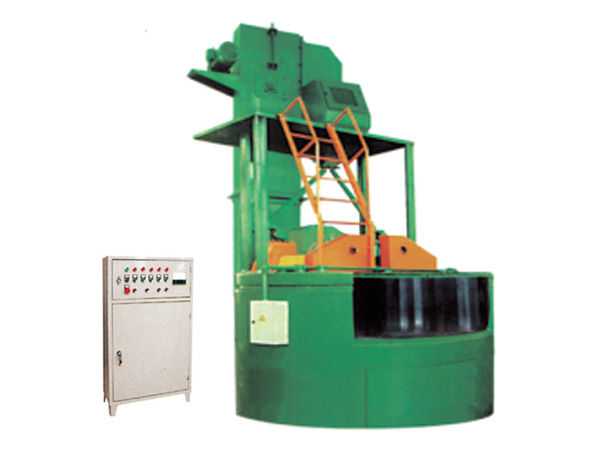

本機適用于小批生產廠家,可清理薄壁、扁、平及怕碰撞的零件與熱處理件的表面,也可對零件進行表面強化處理。
This machine is suitable for small-batch production manufacturers, capable of cleaning the surfaces of thin-walled, flat, and collision-sensitive parts as well as heat-treated components. It can also be used for surface hardening treatment of parts.
